Full range of displays & control panels

Displays and control panels combining safety, comfort, and performance

ACTIA offers a broad range of displays & control panels dedicated to the driver’s workspace. Each unit can be used as a standalone module or easily integrated into the vehicle’s electrical architecture. The compliance of these modules with industry standards is assured through ACTIA’s expertise in on-board electronic systems and its involvement in defining EBSF (European Bus System of the Future) and ITxPT standards.

As standardized architecture nodes, these modules are also used to build complete multiplexed architectures. Whether it’s a display, cluster, gauge panel, or dashboard, ACTIA has the capabilities to fully customize the instrumentation package to your specifications.

Activision display range: A central control screen to manage all vehicle functionalities

Available in 8 and 12 inches, this central control screen provides the driver with fluid, high-resolution information. Used as a standalone unit or connected to the vehicle architecture via ACTiVi, the Activision display range serves as the central hub for all vehicle functions. Modular and robust, it allows you to control your vehicle with just a few clicks.

Activision characteristics

Powerful HMI & Infotainment Processor:

A fluid and responsive interface for fast and intuitive navigation across all applications, ensuring a high-performance and enjoyable experience.

Scalable:

The Activision screen is fully adaptable, allowing you to tailor your solution to meet your specific needs and future developments.

Flexible:

Choose from different screen sizes (8 and 12 inches) for perfect integration, no matter the environment or available space.

Portrait or Landscape Mode:

Enjoy full freedom in screen orientation, allowing for maximum flexibility in how information is presented.

Combined Multi-Touch and Scrolling Effects:

A modern, interactive interface that’s fluid and intuitive for a better user experience.

Ambient Light Sensor:

Automatically adjusts the screen brightness based on surrounding light, ensuring visual comfort at all times.

Front RGB LED for Messages and Alarms:

Clear, visible alerts and messages with a multi-colored LED, providing instant visibility of important information.

Buzzer:

Alongside the LED, the built-in buzzer ensures immediate audible notifications, even in noisy environments.

Aluminium Backshell:

Enhanced electromagnetic compatibility (EMC) for increased reliability and protection against external interference.

Compatible with RAM Mount:

Easy and secure installation on various mounts, ensuring stability.

Backshell Bonded to Mineral Glass:

An elegant, integrated design that improves durability and reduces the risk of damage.

IP6K6K Certified:

High-level protection against dust and water splashes, ensuring long-lasting use even in extreme conditions.

ACTIA’s displays and control panels range

ACTIA’s off-the-shelf solution to enhance ergonomics and comfort in the driver cockpit.

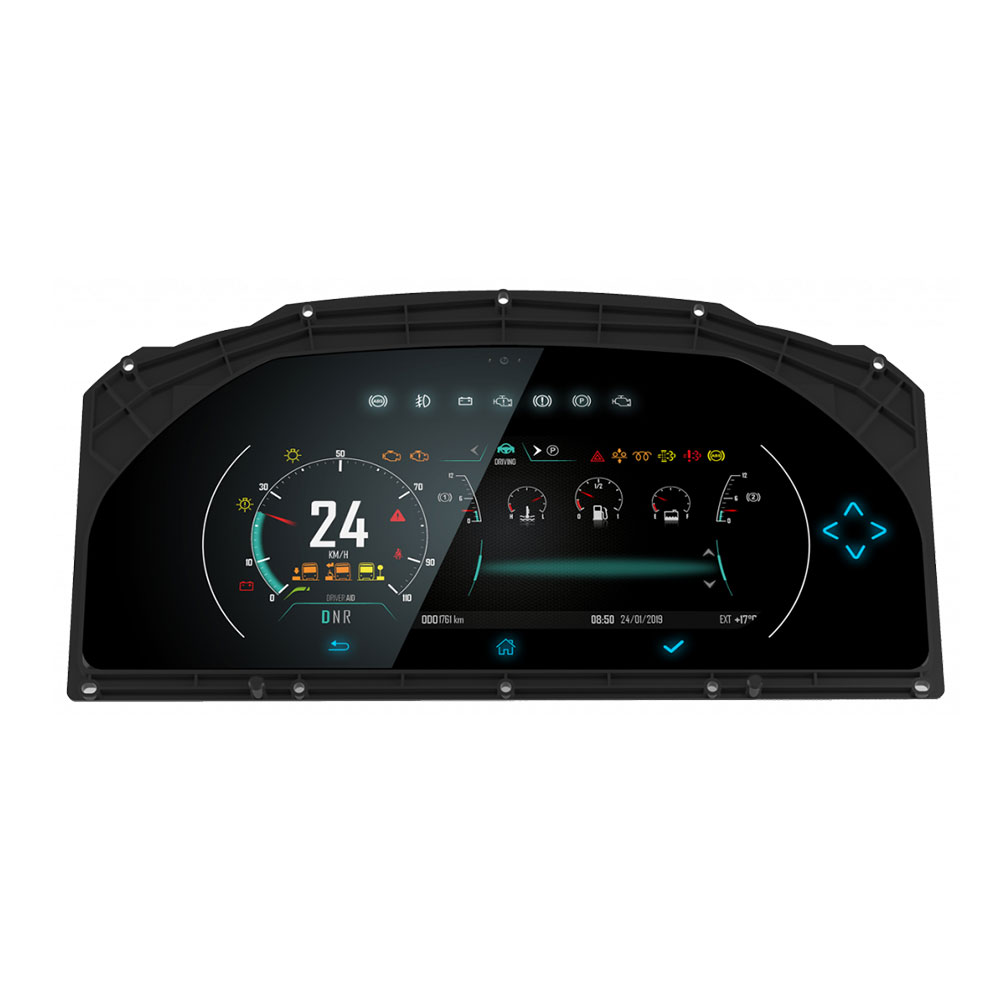

Multic FSX – ergonomic & powerful cluster HMI solution

Drivers need easy-to-understand, intuitive, and reliable information, paired with aesthetics and comfort. Enjoy top-level performance and flexibility with Multic FSX.

12.3″ TFT screen designed for commercial vehicles, expanding Human-Machine Interface (HMI) capabilities.
ActiGRAF and Embedded Wizard for creating custom applications and graphical interfaces.
Powerful microcontroller displaying complex 2.5D graphical elements while running embedded vehicle software.
Wide communication interfaces (CAN, LIN, Ethernet…) for managing electrical loads and sensors.
Graphical libraries and “Right info time” ergonomic specifications in development to help OEMs design efficient and attractive applications.

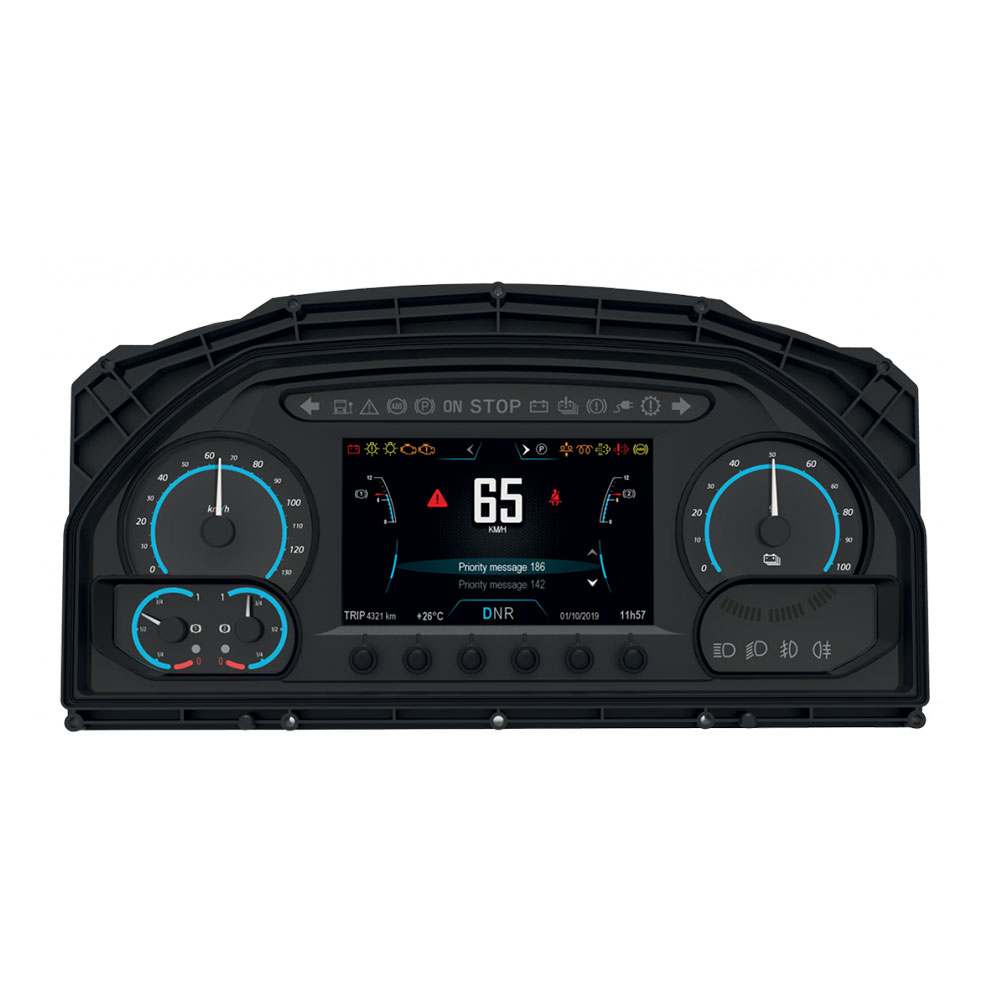

Multic S – An integrated HMI for driver environment

Software and Network Management for up to 4 power modules, ensuring centralized and flexible system management.
Supports ActiGRAF for programming PLCs (Programmable Logic Controllers) in line with IEC 61131-3 standards.
Optional Integrated FMS (Fleet Management System) Gateway, also converting FMS to IP protocol for easier vehicle or equipment management.
Large customization options for dials, gauges, and other elements to meet customer specifications.
Optional Anti-Scratch/Anti-Glare Mineral Lens for better visibility in bright environments and improved durability.
High-Level HMI Capabilities offering powerful features for user-friendly navigation.
7-inch WVGA TFT screen providing excellent display quality for clear visualization of data and interfaces.
4 Video Channels enabling multiple data or images to be displayed simultaneously.
Up to 19 Warning Lights with bi-color LEDs for quick identification of system statuses.
Optional Eco Driving Bar Graph to encourage eco-friendly driving by showing real-time fuel efficiency and energy usage.
Up to 4 Gauges to monitor important vehicle parameters like speed, temperature, and pressure.
6 Push Buttons for easy interaction with the system.
Integrated Master in ActiMUX System for easy control of multiple devices or subsystems in one unified architecture.
ARM Cortex A9 CPU for high-performance and energy efficiency, ensuring smooth operation of all applications and functions.

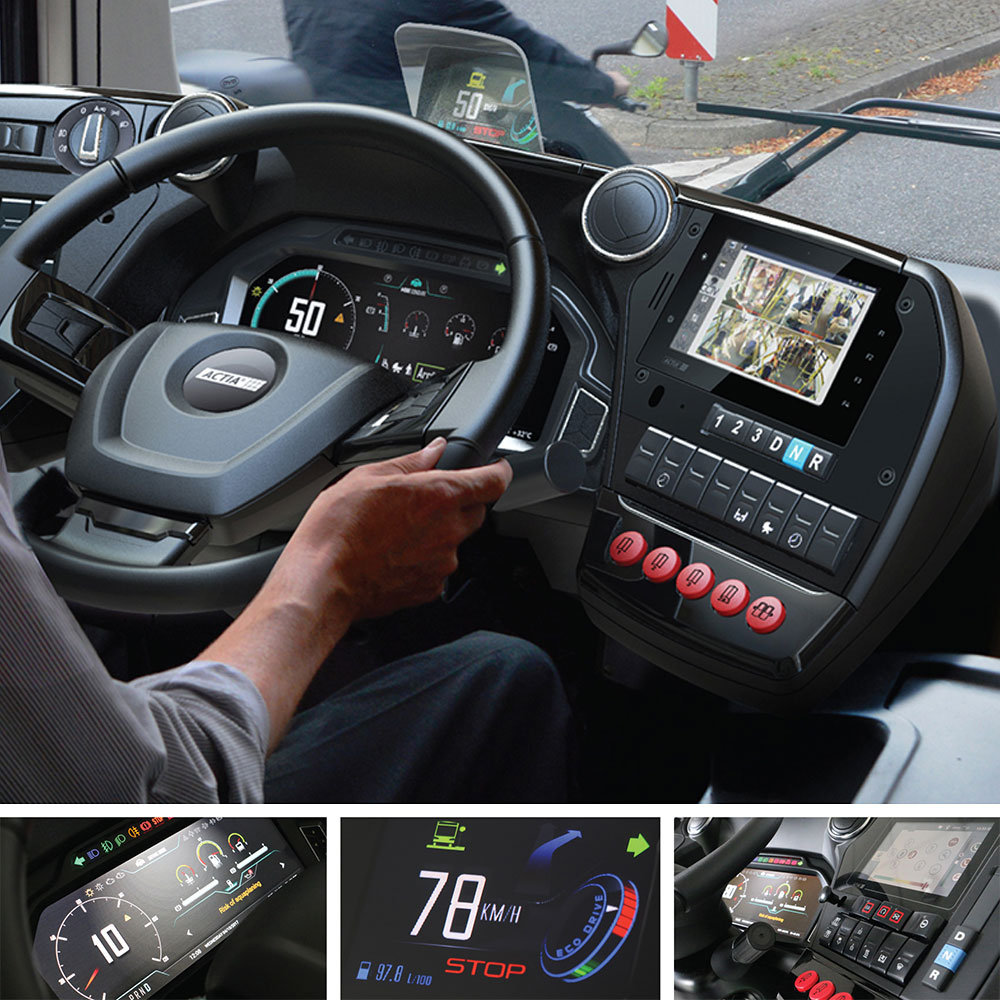

PODIUM 2 - ACTIA driver workplace

Modular, ergonomic, and customizable, Podium 2 combines cutting-edge modules like a head-up display, steering wheel controls, automatic high-low beam light switching, touchscreen switch modules, and more.

Designed in every detail to bring comfort and effective driving, Podium 2 is an advanced workspace with an ergonomic and aesthetic design. This fully modular system offers three customizable areas and design options, along with a configuration tool for customers to define and optimize their combination.
